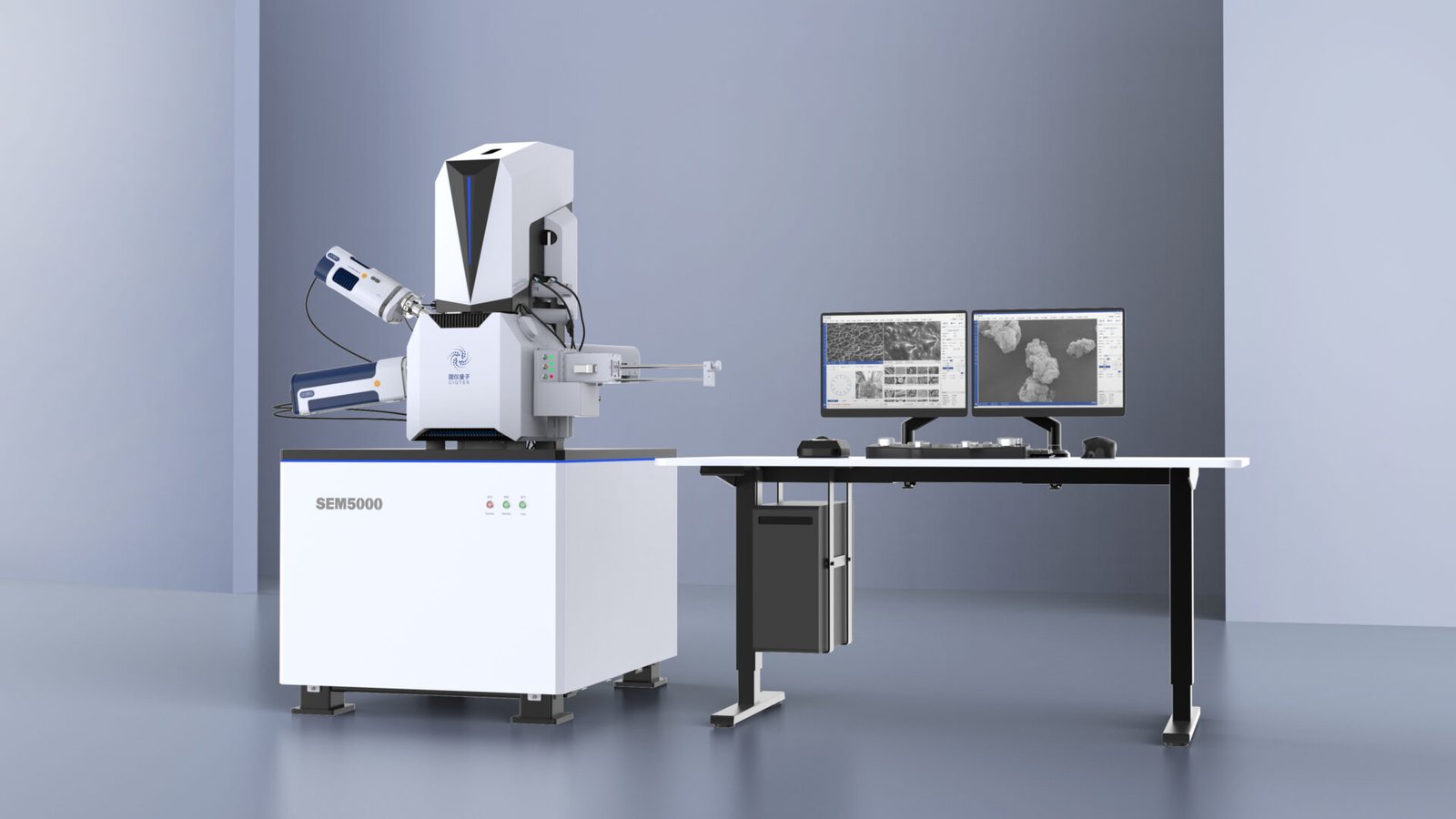

SEM 5000 FEG Scanning Electron Microscope
CIQTEK SEM 5000 is a high-resolution, feature-rich field emission scanning electron microscope (FE-SEM, FEG SEM).
Advanced column design, high voltage tunneling technology (SuperTunnel), low aberration non-leakage magnetic objective lens design, to achieve low-voltage high-resolution imaging, while magnetic samples can be applied. Optical navigation, advanced automatic functions, well-designed human-machine interaction, and optimized operation.
Whether experienced or not, one can quickly get started with high-resolution shooting tasks
Parameters
| Key Parameters | Resolution | 1.0 nm @ 15 kV, SE 1.5 nm @ 1 kV, SE0.8 nm @ 30 kV, STEM |
| Acceleration voltage | 20 V ~ 30 kV | |
| Magnification | 1 ~ 2,500,000 x | |
| Electron Gun | High brightness Schottky Field Emission Electron Gun | |
| Sample Chamber | Vacuum System | Fully automatic control, oil-free vacuum system |
| Camera | Dual Cameras (Optical navigation + in-bin monitor) |
|
| Distance | X: 120 mm, Y: 115 mm, Z: 50 mm T: -10°～ +90°, R: 360° (*Optional extra-large bin version available) |
|
| Detectors and Extensions | Standard | The high-angle electronic detector in the lens column The side low-angle electronic detector |
| Optional | Flush-mounted mid-angle backscattered electron detector Automatic retractable scanning transmission electron microscopy (STEM) detector Sample exchange chamber High-speed beam gate and electron beam exposure Energy dispersive spectroscopy (EDS/EDX) Electron Backscatter Diffraction (EBSD) Electron-beam-induced current (EBIC) Cathodoluminescence (CL) High and low temperature in-situ stretching table nanoManipulator Large-Scale Image StitchingTrackball & Knob Control Panel |
|
| Software | Operating System | Windows |
| Navigation | Optical Navigation, Gesture Quick Navigation | |
| Automatic Functions | Auto Brightness Contrast, Auto Focus, Automatic Dissipation |
